Parameter Configuration

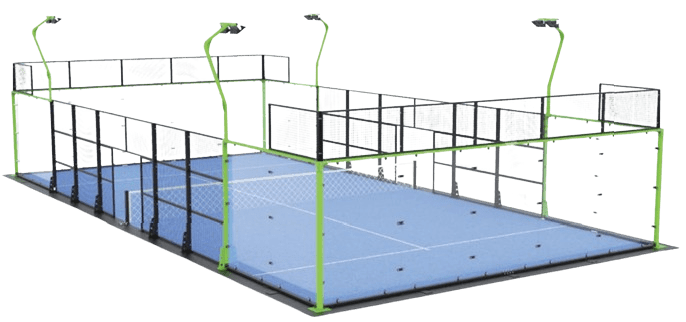

Site Specification:

20m × 10m

Artificial Turf

Type: Textured filaments artificial turf; The fibers completely encapsulate the sand; Minimum risk of abrasion;

Backing: Double PP + PU;

Height: 12mm; Dtex: 13600; Density: 46200; Gauge: 3/16;

Standard: UNE: 41958 IN, GB/T20394-2013 Standard;

Sand filling: 60–100 mesh silica sand, 8–10 kg/sqm.

Tempered Glass

Thickness: 12mm;

Size: 2995mm × 1995mm (18 pieces);

Standard: EN12150-1, GB/T 20394-2006.

Mesh and Column

Column & cross bar: SPHC steel, 100×100×3mm, 100×50×3mm;

Standard: IE60502, GB15065-94;

Beam: 8mm thick steel plate;

Bottom beam: 10mm thick steel plate.

LED Light

8 pieces of 200W LED light;

Illuminance: 300 Lux;

Height: 6m;

Color temperature: 6500K;

Input voltage: 180–220V; Frequency: 50Hz.
